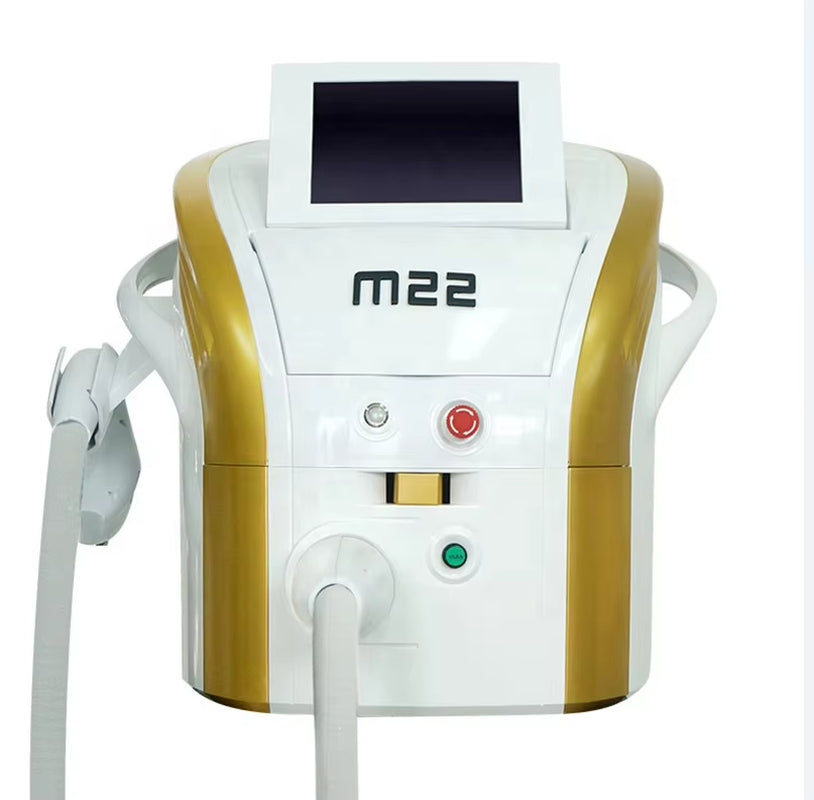

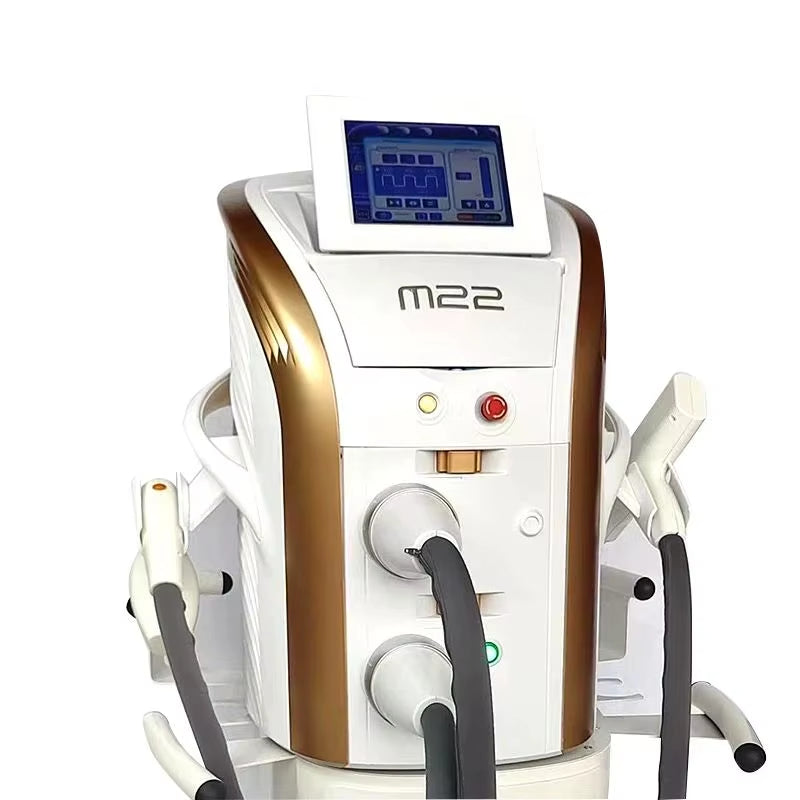

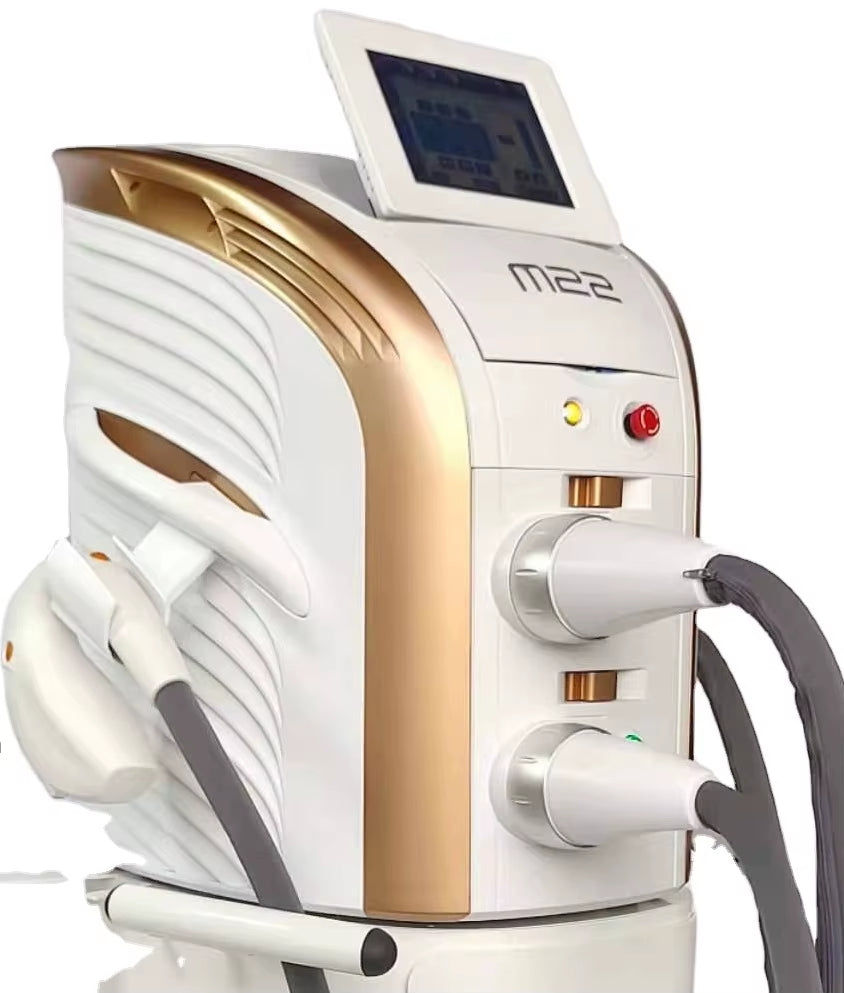

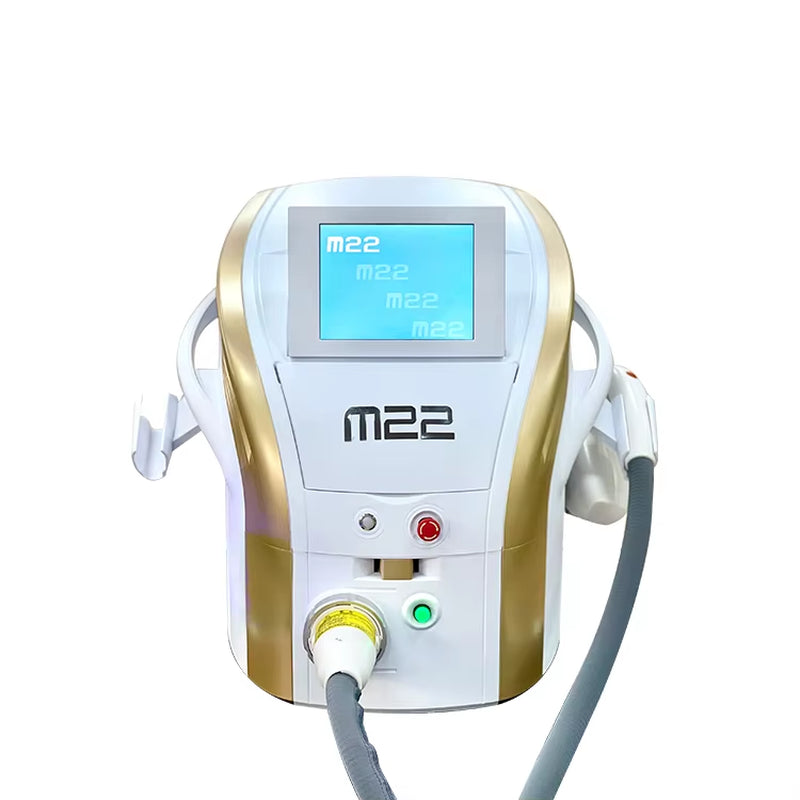

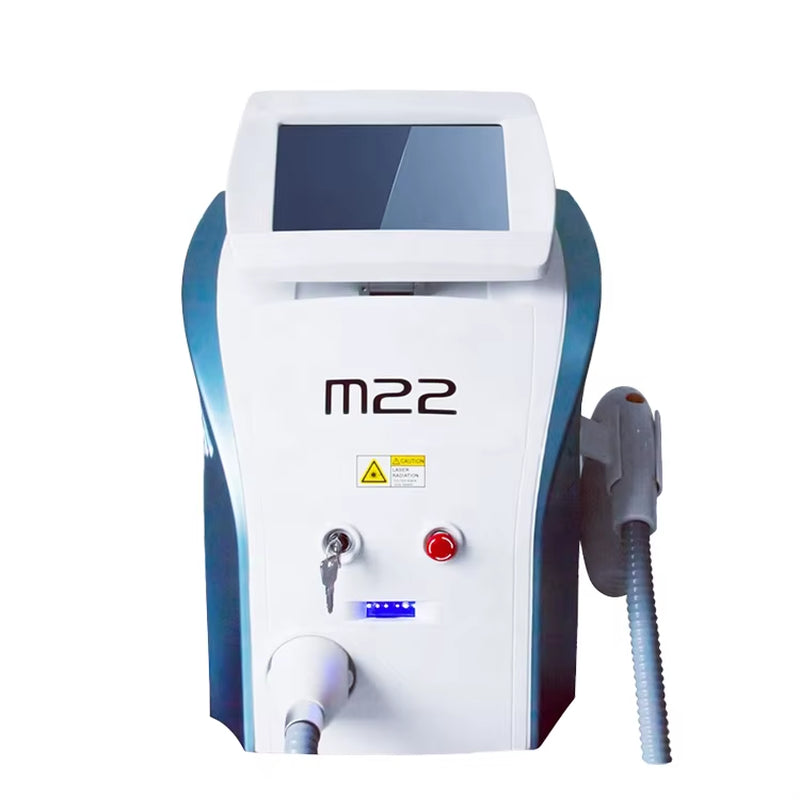

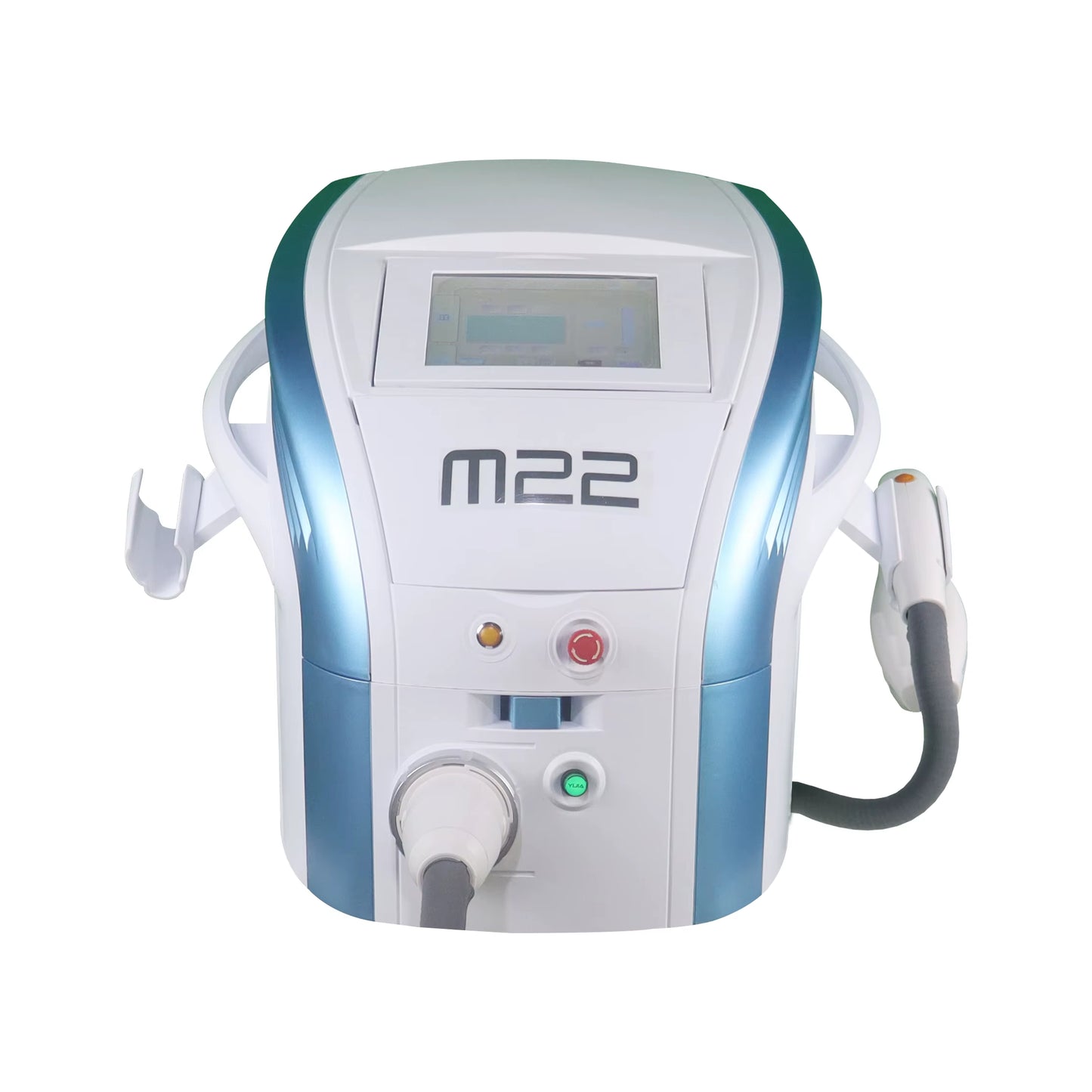

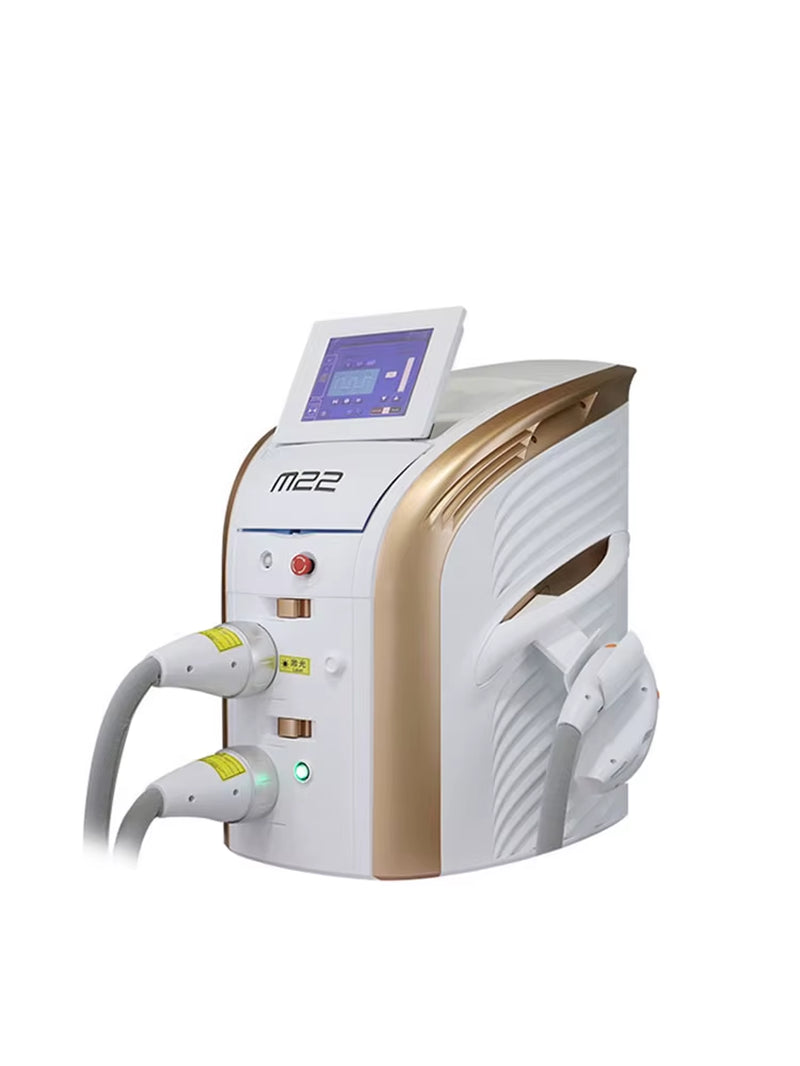

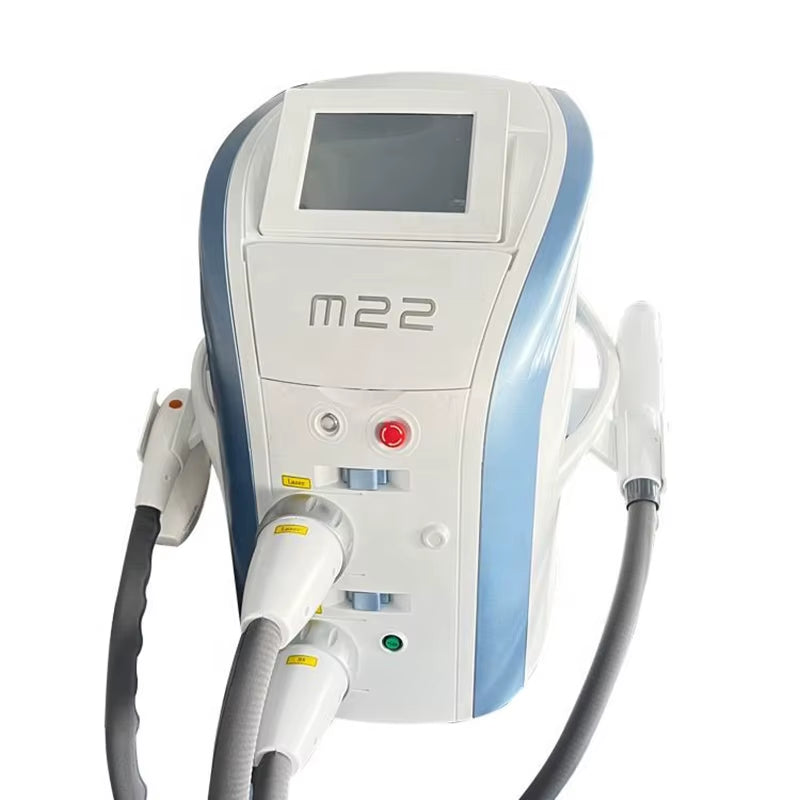

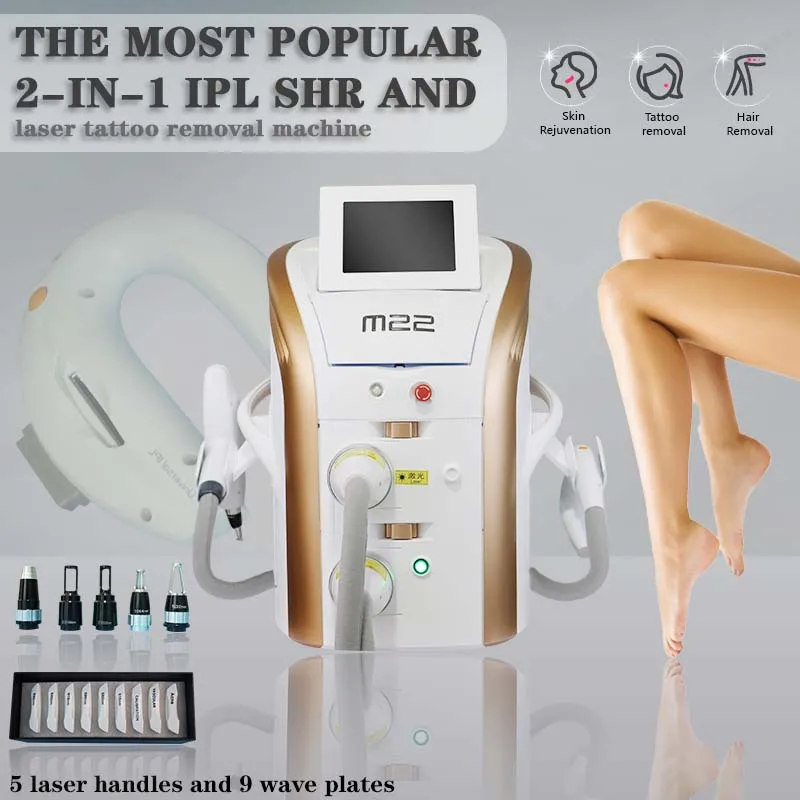

2 in 1 M22 OPT IPL Acne Treatment Vascular Removal Skin Rejuvenation Laser Hair Removal Beauty Machine NDYAG

Specifications:

Voltage:110-240V 50-60HZ
Machine power for different configuration:

Single IPL handle:

Standard version: 2000W

High configuration version: 2500W

IPL handle & QS handle:

Standard version: 2500W

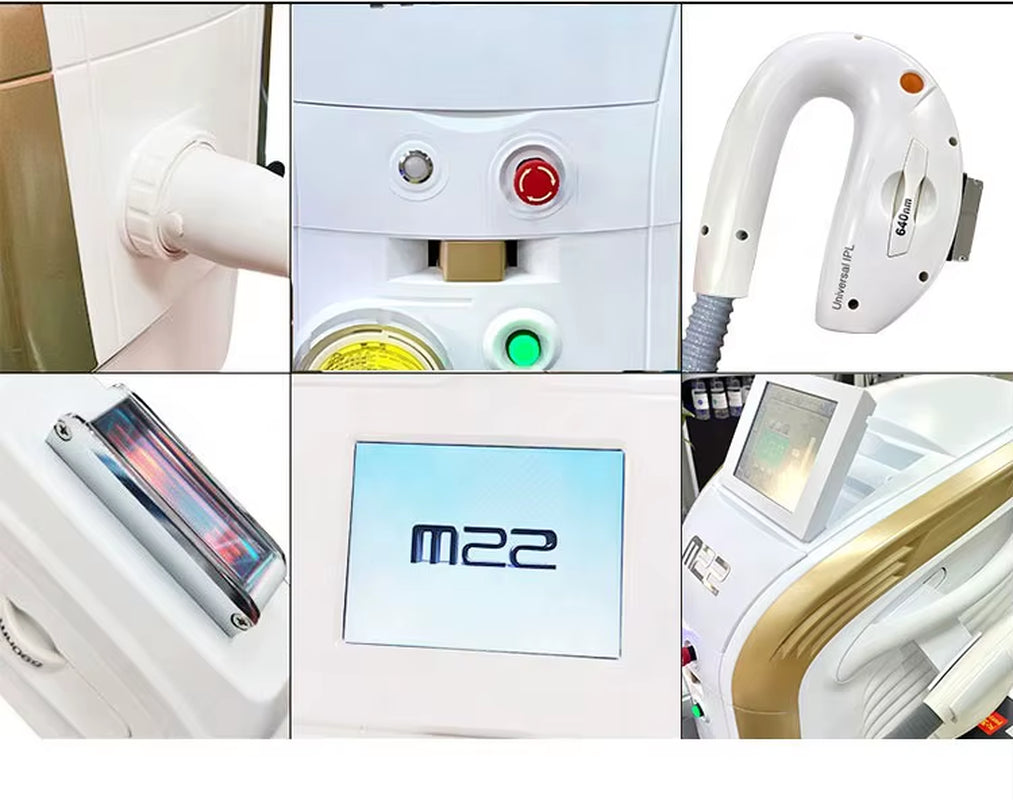

Universal IPL

Spectrum:400-1200nm

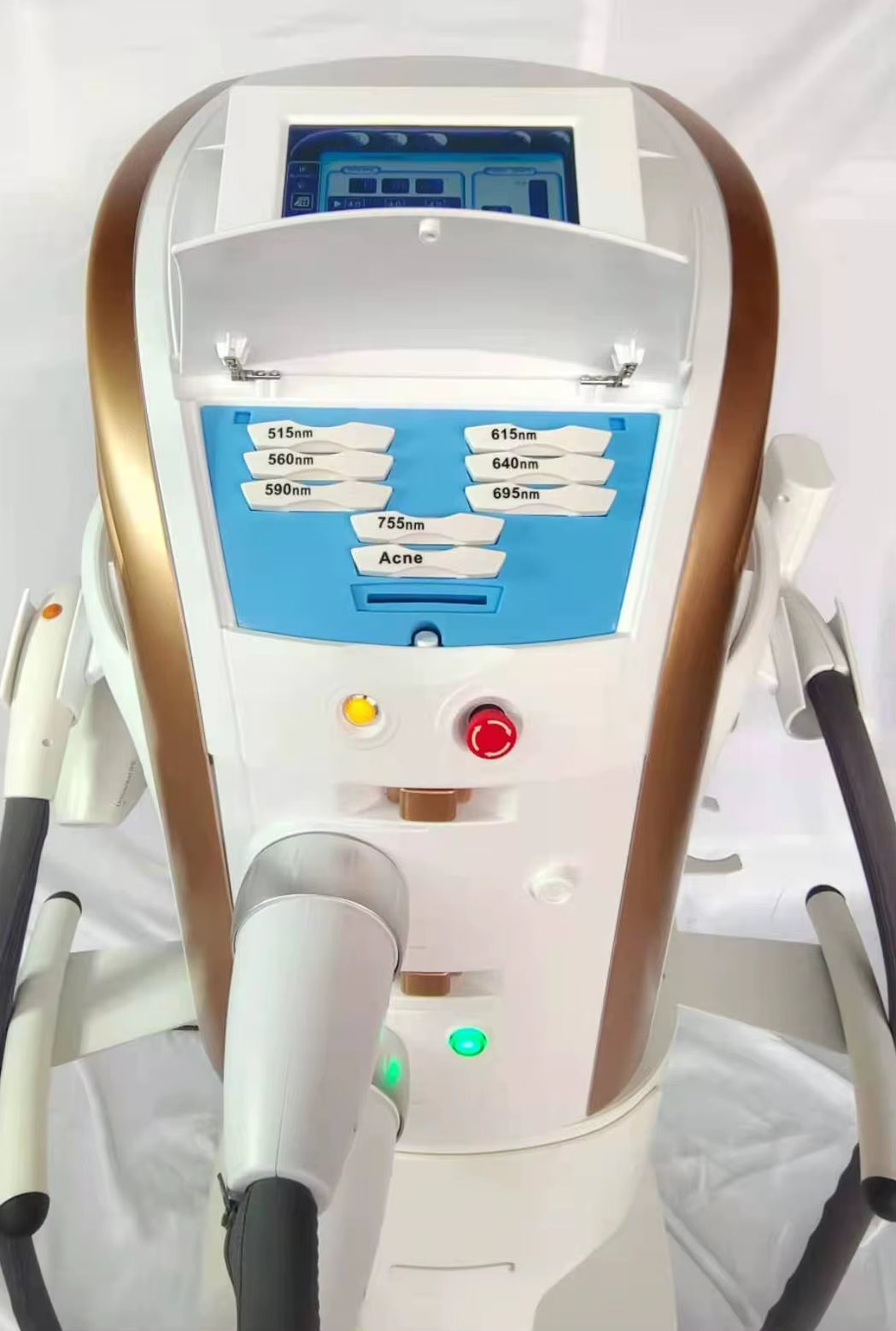

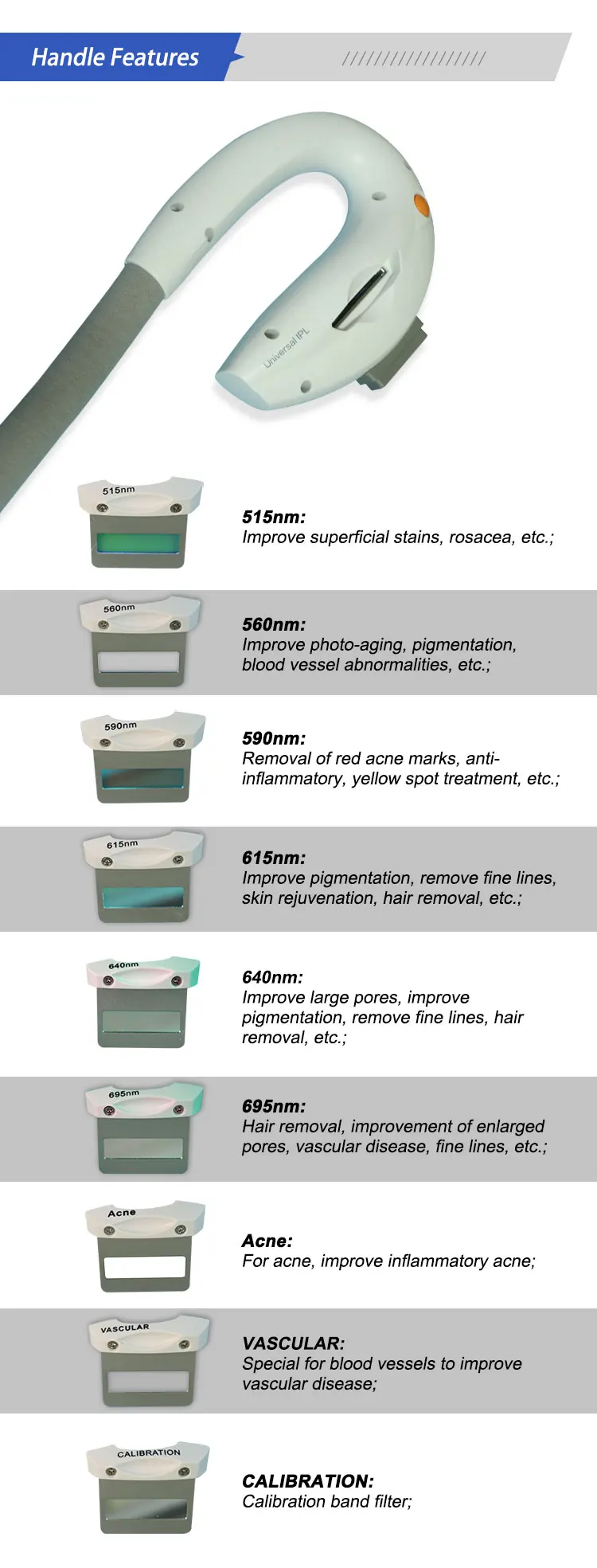

Fiters:515/560/590/615/640/695nm/CALIBRATION/ACNE/VASCULAR
Fluence:10-56J/cm2
Pulse Duration:4-20ms
Pulse Delay:5-150 ms
Pulse Characteristic:Multiple Sequential Pulsing
Repetition Rate:Up to 1 Hz
Spot Size:15*8mm
Cooling:Continuous contact cooling

Q-switched ND YAG

Wavelength:1064nm/Non-invasive 1064nm/532nm/Non-invasive/ 1320nm(Black face doll)
Fluence:0.9-14J/CM
Pulse Duration:6-8 nsec
Repetition Rate:0.5-5.0HZ
Spot Size:2.0; 2.5; 3.5； 4.0； 5.0； 6.0 and 8.0mm

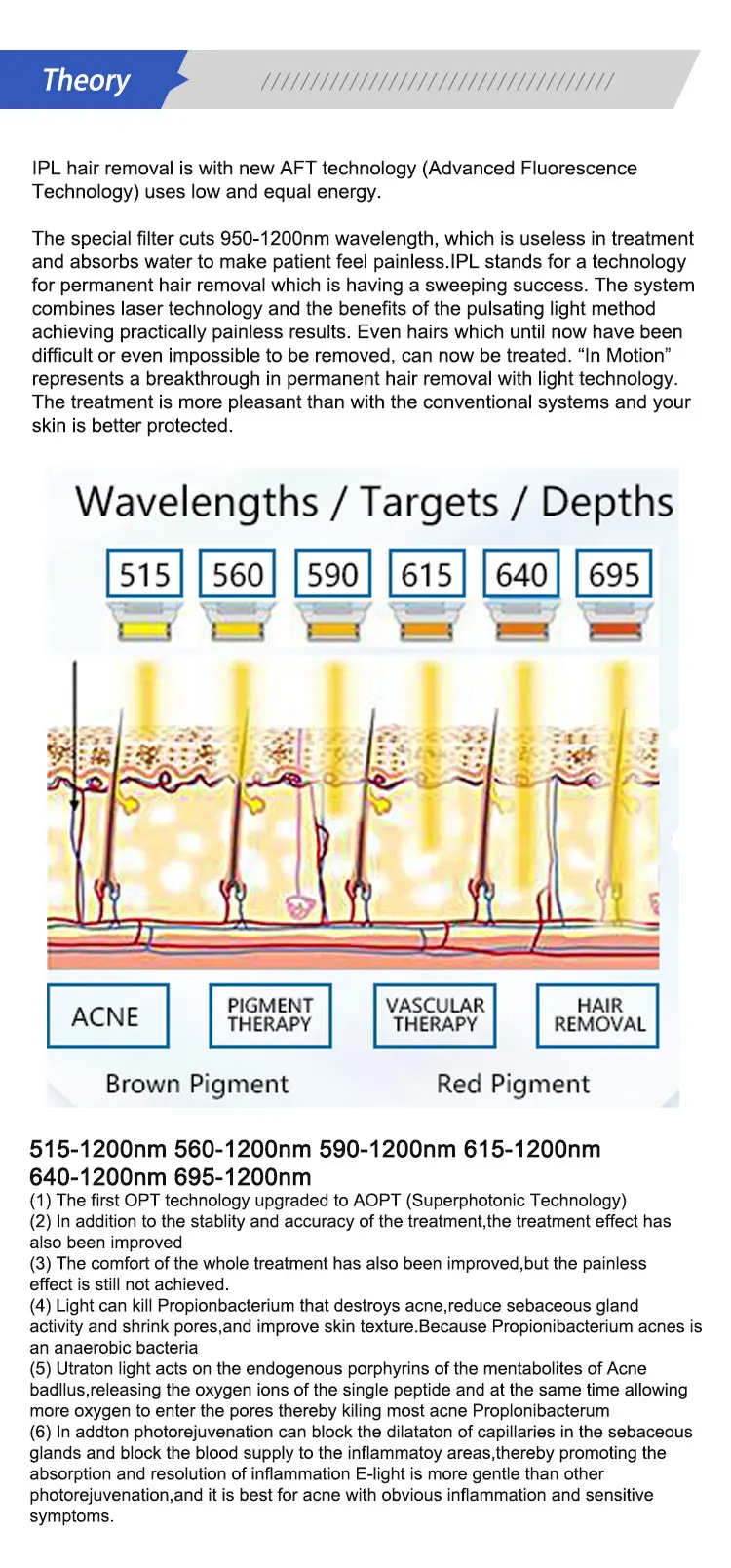

Theory

IPL hair removal is with new AFT technology (Advanced Fluorescence Technology) uses low and
equal energy. The special filter cuts 950-1200nm wavelength, which is useless in treatment and absorbs water to make patient feel
painless.IPL stands for a technology for permanent hair removal which is having a sweeping success. The system combines laser
technology and the benefits of the pulsating light method achieving practically painless results. Even hairs which until now have
been difficult or even impossible to be removed, can now be treated. “In Motion” represents a breakthrough in permanent hair
removal with light technology.
The treatment is more pleasant than with the conventional systems and your skin is better protected.

Principle of photopyrolysis:

The strong pulse photon hair removal technology is based on the principle of selecting photopyrolysis, that is, strong pulsed light of a specific wavelength is irradiated on the hair, and it is selectively absorbed by the melanin in the hair shaft and hair follicle, and the local high temperature is instantly formed, which makes the hair follicle coagulate and shrink. , Without damaging normal skin and sweat glands, it inhibits the growth of hair and achieves the effect of permanent hair removal.

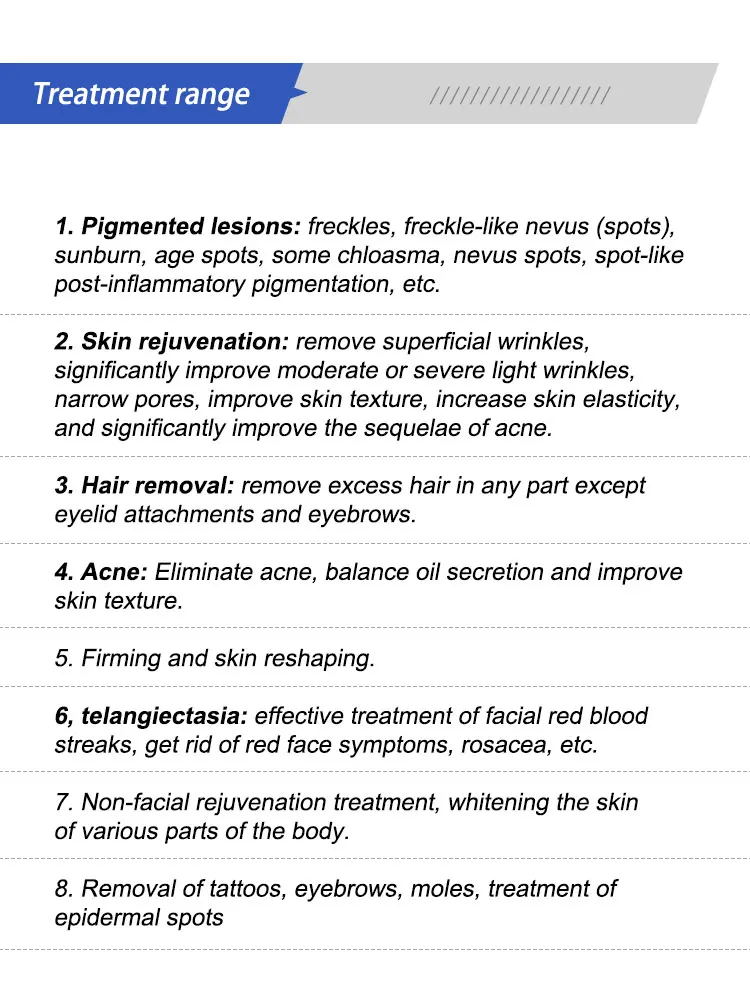

M22 IPL Machine has 6 functions:

Permanent hair removal, skin rejuvenation, pigmentation treatment, vascular removal, acne treatment, age spots removal.

(1) The first OPT technology is upgraded to AOPT (Superphotonic Technology),

(2) In addition to improving the stability, accuracy, and effectiveness of treatment,

(3) The overall comfort of the treatment is also improved, but the painless effect is still not achieved.

(4) Light can kill Propionibacterium acnes, reduce sebaceous gland activity and shrink pores, and improve skin texture.Because Propionibacterium acnes is an anaerobic bacteria,

(5) Superphoton acts on the endogenous porphyrin of the metabolites of acne bacillus, releasing the oxygen ions of the single peptide while allowing more oxygen to enter the pores, thereby killing most Propionibacterium acnes.

(6) In addition, super-photon skin rejuvenation can block the telangiectasia of the sebaceous glands and block the blood supply to the inflammatory parts, thereby promoting the absorption and resolution of inflammation.And E-light is gentler than other photorejuvenation, which is best for acne with obvious inflammation and sensitive symptoms.

Advantages:

Virtually painless:
SUS Laser Pulsedlite is a clinically proven method of hair removal that is virtually painless. The unique heating and engergy delivery method effectively damages the hair follicle and prevents re-growth, while preventing injury to the sounding tissue. At the same time, it is cooled by sapphire contact cooling.

Proven safety record for all skin type:
SHR is safe method of hair removal for all skin types, including dark skin. Rather than exposing the hair follicle to a single high energy pulse which can cause trauma to skin with a high melanin count, SHR gradually heats the skin until the required hea enegy is delivered to the hair follicle by repetitively shirt energy pulses. These pulses minimize the risk of burning to the
skin, as it is the heart build-up which reaises the temperature of the dermis to the level needed for preventing hair growth.

Theory:

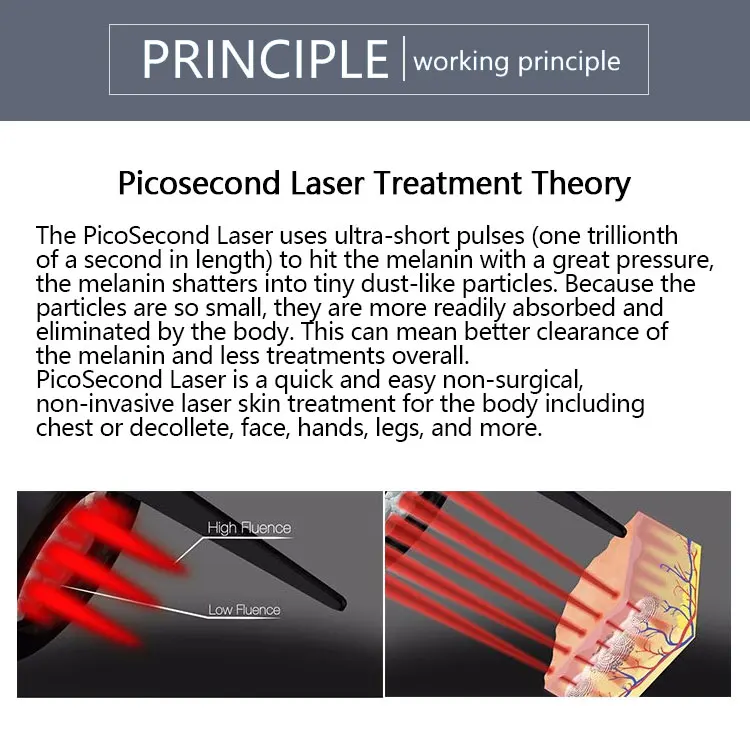

The Q-Switch laser radiates the light of specific wavelengths in high peak energy pulse,and in ultrashort nanosecond the light penetrates the tissue and is absorbed by the pigment and result in an instantaneous blast. The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and the other parts will be spilt into tiny particles that can be engulfed by phagocytes and then eliminated .

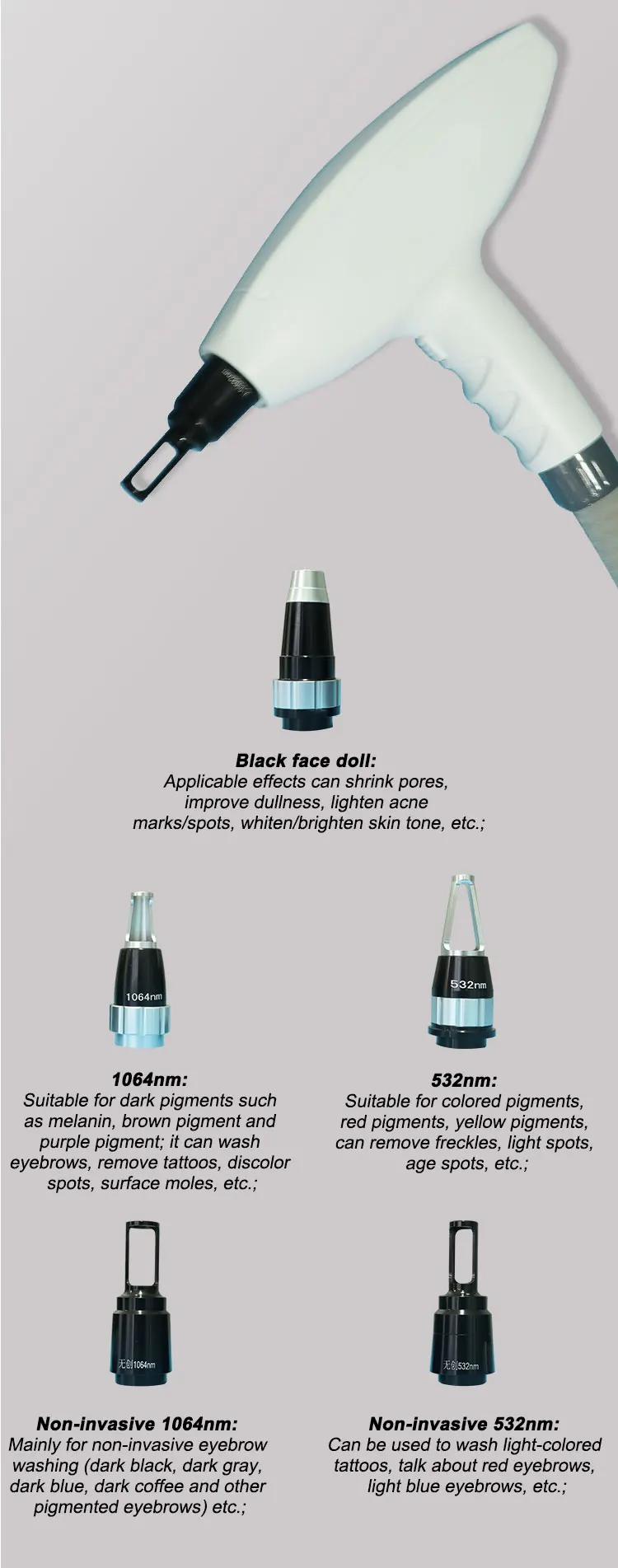

Function of each heads

1)Fixed 1064nm&532nm heads,used for Tattoo/Eyebrow/Eyeline/Birthmark/Nevus/Pigment/Melasma removal.tattoo removal machines

2)Fixed 1320nm head

used for skin whiten/skin rejuvenation.

3)Adjustable 1064nm&532nm heads

the spot size is 1-5mm adjustable, suitable for both big area and small area treatment.

1064nm head for black, cyan, brown color tattoo, 532nm head for red color tattoo.

4)755nm laser head

professional for Senile plaques
